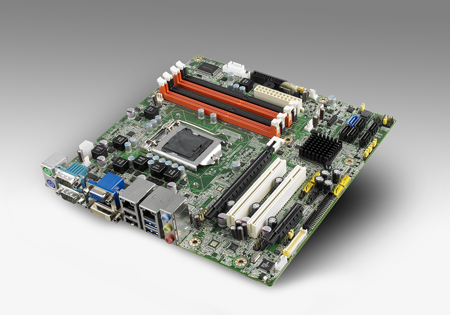

| Form Factor |
Form Factor |
Micro ATX |
| Processor |
CPU |
Intel i7-2600 / i5-2400 / i3-2120 / Pentium G850 / Celeron G540 |
| CPU TDP |
95W / 65W |
| Frequency |
2.5GHz ~ 3.4 GHz |
| Core Number |
2/4 |
| L3 Cache |
2 ~ 8MB |
| BIOS |
AMI EFI 64Mbit |
| Chipset |
Intel Q67 PCH |
| Memory |
Technology |
DDR3 1066/1333 MHz |
| Max. Capacity |
16 GB |
| ECC Support |
No |
| Socket |
4 x 240-pin DIMM |
| Display |
Controller |
Intel HD Graphics |
| Graphic Engine |
DirectX 10.1 and OpenGL 3.0 support |
| Graphic Memory |
1GB maximum shared memory with 2GB and above system memory installed |
| VGA |
Up to 2048 x 1563 @ 60Hz |
| LCD (TTL/LVDS/eDP) |
LVDS: Single channel 24-bit, up to 1920 x 1200 at 60 Hz |
| DDI (HDMI/DVI/DisplayPort) |
DVI: 1920 x 1200 @ 60Hz |
| Multiple Display |
Dual |
| Expansion |
PCI Express x 16 |
1 |
| PCI Express x 4 |
1 |
| PCI |
2 |
| LPC |
1 |
| Ethernet |
Controller |
GbE1: Intel 82579LM GbE2: Intel 82583V |
| Speed |
10/ 100/ 1000 Mbps |
| Connector |
RJ45 x 2 |
| Audio |
Audio Interface |
HD Audio |
| CODEC |
Realtek ALC892, High Definition Audio (HD) |
| Connector |
2 (Line out, Mic-in) |
| Watchdog Timer |
WatchDog Timer |
Yes |
| Storage |
SATA |
4 x SATAII (Max. Data Transfer Rate 300 MB/s) 2 x SATAIII ( (Max. Data Transfer Rate 600 MB/s) |
| RAID |
Software RAID 0, 1, 5, 10 |
| I/O |
USB3.0 |
2 |
| USB2.0 |
10 |
| GPIO |
8-bit GPIO |
| LPT |
1 |
| COM Port |
6 ( 5 x RS232, 1 x RS232/ 422/ 485) |
| Keypad |
1 |
| TPM |
Optional |
| Smart Fan |
5 |
| Power |
Power Type |
ATX |
| Connector |
ATX24P |
| Power Consumption (Idle) |
1.73A @ 5V / 0.89A @ 3.3V / 0.68A @ 12V / 0.29A @ 5Vsb / 0.01A @ -12V |
| Power Consumption (Full Load) |
3.52A @ 5V / 1.07A @ 3.3V / 3.79A @ 12V / 0.32A @ 5Vsb / 0A @ -12V |
| Battery |
Lithium 3 V / 200 mAh |
| Environment |
Operational Temperature |
0 ~ 60° C (32 ~ 140° F) (Operational humidity: 40° C @ 95% RH Non-Condensing) |
| Non-Operational Temperature |
-20 ~ 70° C (-4 ~ 158F) and 60° C @ 95% RH Non-Condensing |
| Vibration Resistance |
3.5 Grm (Non-Operation Mode) |
| Physical |
Dimension (mm) |
244 x 244 mm |
| Weight |
1.2 kg (2.64 lb), weight of total package |
| Operating System |
Microsoft Windows |
Yes |
| Linux |
Yes |
| SUSIAccess |
Yes |
| Certification |
EMC |
CE, FCC
|
